Landing Nipple
TOOL CONFIGURATION
Landing nipples are run on completion tubing to provide a specific landing location for the subsurface flow control equipment. The common internal profiles of these landing nipples make them universal.
CT X and XN landing nipples are designed for use with standard weight tubing whereas R and RN landing nipples are for heavy weight.
​
FEATURES
-
Large Bore
-
Less work over risk.
-
Provides unlimited number of positions to set. 
​
Lock Mandrel
TOOL CONFIGURATIONS
​Lock Mandrel is a selective/nonselective set lock designed to be landed and locked in a Landing Nipple Profile
FEATURES
​
-
Simple and rugged construction.
-
Keys of locking mandrel retracted into assembly while running and retrieving.
-
Locks designed to hold pressure from above or below from sudden reversals.
​
Blanking Plug Bottom
With Equalizing Prong
The COT Model CT-BPB-EP Equalizing Prong run into a Lock Mandrel Assembly, turn into a blanking plug, to hold pressure differentials from above or below.
S-Pulling Tool
TOOL CONFIGURATIONS
​
S Pulling Tool is a wire line service tool designed to remove retrievable subsurface devices with external fishing necks from a well. PTS is also useful as a running tool for collar stops, pack-off anchor stops, and other subsurface devices landed against a positive no-go.
FEATURES
​
-
A set of three dogs to engage the fishing neck.
-
It allows extensive upward jarring to pull a bottom hole control.
​
C1 Running Tool
TOOL CONFIGURATIONS
​
The model “CT-C1” runs flow Control devices into the well those have external fishing neck locks. A seal bore locating ring provides Top No go setting
​
Equalizing Valve Pulling Prong
TOOL CONFIGURATIONS
​
The COT Model CT-EPG Equalizing Prong run into a Lock Mandrel Assembly, turn into a blanking plug, to hold pressure differentials from above or below
​
BO Shifting Tool
TOOL CONFIGURATIONS
​
BO shifting tool is designed to selectively locate and shift most sliding sleeves.
FEATURES
​
-
Emergency releasing feature
-
Automatic releasing feature
​
Blanking Plug
These are wire line operated combination tools. These are the devices capable of holding pressure differentials from above or below when set at any depth in a corresponding Landing Nipple Profile of matching size & type.
FEATURES
-
Less completion and production maintenance costs.
-
Set hydraulic actuated packers.
-
Allows for repositioning of flow controls as well conditions change.

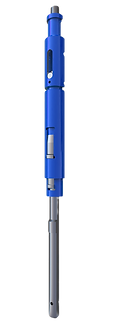

X/R-Line Running Tool
TOOL CONFIGURATIONS
X and R-line running tools is used to set X, XN, R, and RN lock mandrels in their respective landing nipples.
FEATURES
-
X-line running tools used to locate X/XN Types Landing Nipples.
-
R-line running tools used to locate R/RN Types Landing Nipples.
​
GS Pulling Tool
TOOL CONFIGURATIONS
​
‘GS’ Running/Pulling Tool is a wire line service tool designed to remove retrievable subsurface devices with internal type fishing neck from a well. The tool is offered in a wide range of sizes.
FEATURES
​
-
A set of dogs to engage the fishing neck.
-
It allows extensive upward jarring to pull a bottom hole control.
-
The shear-down-to-release feature
​
Running Tool Equalizing Prong
TOOL CONFIGURATIONS
​
This is a specially COT designed Running tool used to retrieve EPG after successful operation.
​
Flow Control Equipments
Sliding Sleeve
TOOL CONFIGURATIONS
​
CT-CMD-S is downshift-to-open Sliding Sleeve whereas CT-CMU is upshift-to-open Sliding Sleeve. CMD is high performance, equalizing sliding sleeve which allow communication between the tubing and annulus for circulation or selective-zone production.
FEATURES
​
-
Modular design permits conversion from a "CMD" to "CMU" or vice versa.
-
Can be opened repeatedly against high differential pressures.
-
Several sleeves can be shifted in a single slick-line trip.
-
ESP Application comprises of protection to coil tubing, control line & Emle cables.
​
